4 Tons Bogie Frame Rotator , Bogie Frame Lift And Turn Device

Name: 4 Tons Bogie Frame Rotator Bogie Frame Lift And Turn Device
Brand: Heqiang Machinery
Price: 1 USD

China 4 Tons Bogie Frame Rotator , Bogie Frame Lift And Turn Device factory

Brand Name : Heqiang Machinery

Model Number : HQ87

Certification : ISO9001

Place of Origin : Hubei, China

MOQ : 1 set (2 units)

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 120 days after advance payment & design approval

Packaging Details : Standard export package

Product name : Bogie Frame Rotator

Application : Railway maintenance workshop

Usage : Lift and rotate a bogie frame

Condition : New

Lifting capacity : 4 tons

Control mode : Automatic and Manual

Warranty : One year

After-sales service provided : Engineers available to service machinery oversea, Online support

Contact Now

Bogie Frame Rotator , Railway Bogie Frame Lift and Turn Device

Product overview:

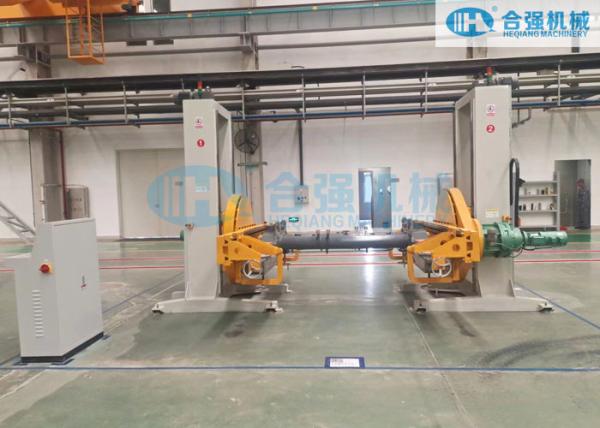

This Bogie frame rotator is used to lift and rorate a bogie frame to an appropriate height and position to allow for specific inspections, maintenance by the operator, making it easy to weld, mount and dismount components, or to carry out visual and ultrasounds inspection, etc.

The rotator consisits of two lifting jacks, equipped with a rotating device with a reduction motor on each side. The frame is secured between the jacks with a fixing device that is specially designed to adapted to every type of bogie frame.

Technical Parameters:

Maximum load capacity	4000 kg
Lifting stroke	1800 mm
Lifting speed	≤ 1000 mm/min
Rotating speed	0.5 r/min
Rotating range	±360 °
Rotating torque	18000 Nm
Synchronization accuracy	Less than 0.5 mm
Overall dimension (unit)	3350x1800x3000 mm
Power supply (AC 3 phase)	380V/50Hz or as per required

(*The detail parameters can be adjusted as per customer's actual requirements.)

Main features:

The equipment is mainly composed of lifting mechanism, support clamping mechanism, turning mechanism, electrical control system and control panel, etc.
Lifting mechanism: The lifting mechanism has the automatic lifting and good self-locking function. The lifting height can be adjusted arbitrarily in the range of 400 to 2000 mm from the floor. Any position has a mechanical anti-fall function, and it cannot be raised and lowered when the mechanical anti-fall. It can be jogged and linked, and the lifting height has upper and lower limit positions and necessary working limits. The lifting mechanism has a safety alarm function, the safety alarm light flashes when lifting.
Support clamping mechanism: The support clamping mechanism is designed into a modular structure to adapt to the clamping of different bogie frames.
Turning mechanism with 360° automatic turning function.
The machine is equipped with an operation control console, which can separately control the lifting mechanism, turning mechanism, support clamping mechanism and other control systems. There is a reminder function for lifting and turning. It's equipped with an emergency stop button in case of emergency, and an alarm indicator.

4 Tons Bogie Frame Rotator , Bogie Frame Lift And Turn Device
